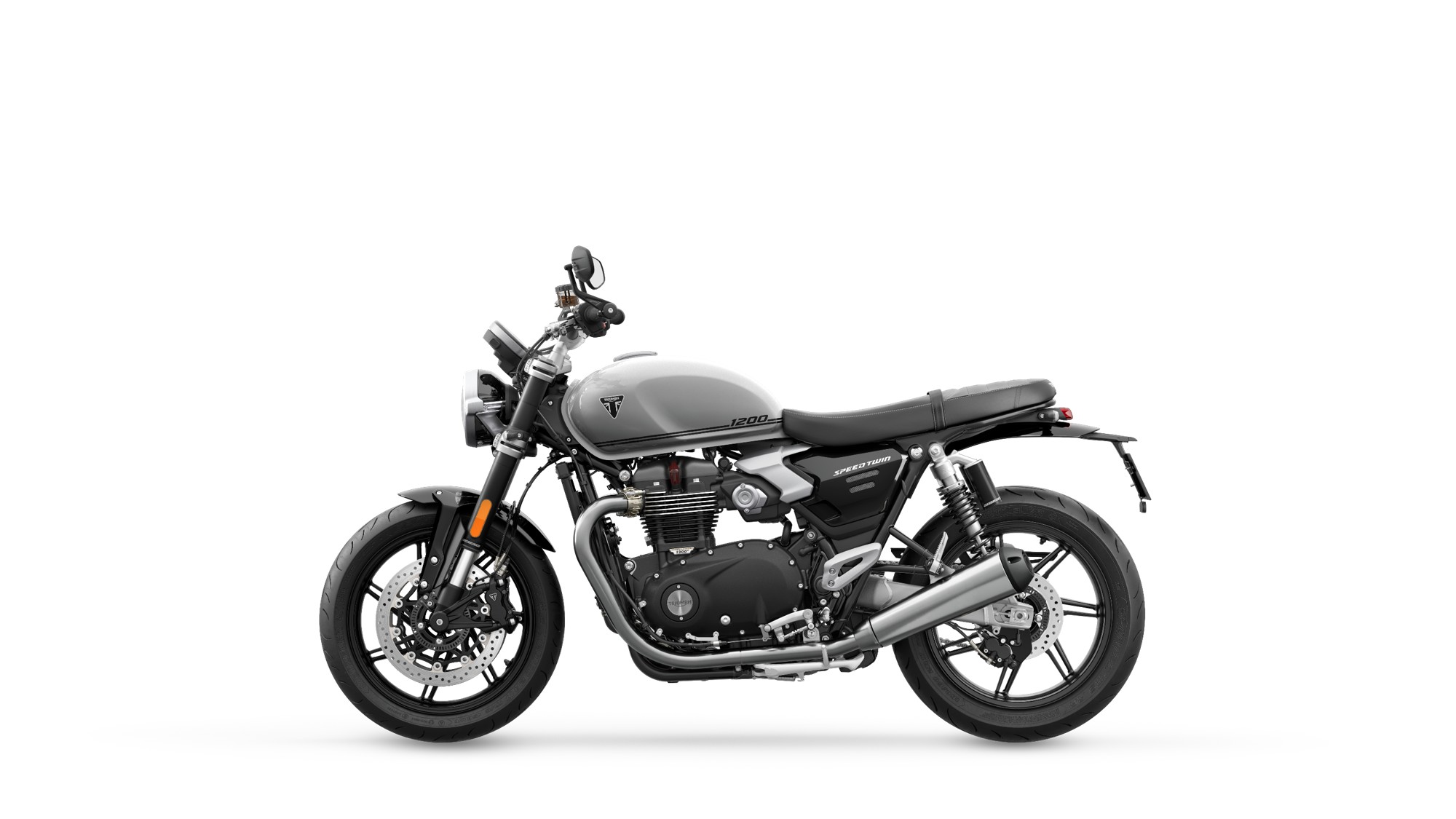

Triumph Speed Twin 1200 – 2025

Engine & Transmission

• Type: Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
• Capacity: 1200 cc
• Bore: 97.6 mm
• Stroke: 80 mm
• Compression Ratio: 12.1:1
• Max Power (EC): 105 PS / 103.5 bhp (77.2 kW) @ 7,750 rpm
• Max Torque (EC): 112 Nm @ 4,250 rpm
• Fuel System: Multipoint fuel injection with electronic throttle control
  • 2 Rider Modes: Road, Rain
• Exhaust: Brushed stainless steel 2-into-2 exhaust system with twin silencers
• Final Drive: X-ring chain
• Clutch: Wet, multi-plate, slip
• Gearbox: 6-speed

Chassis

• Frame: Tubular steel with steel cradles
• Swingarm: Twin-sided aluminium
• Front Wheel: Cast aluminium alloy, 7-spoke, 17 x 3.5 in
• Rear Wheel: Cast aluminium alloy, 7-spoke, 17 x 5.0 in
• Front Tyre: 120/70 R17
• Rear Tyre: 160/60 R17
• Front Suspension: Ø 43mm USD Marzocchi forks, 120mm travel
• Rear Suspension: Twin Marzocchi RSUs with external reservoirs and adjustable preload, 116mm wheel travel
• Front Brakes:
  • Twin Ø 320mm floating discs
  • Triumph-branded four-piston radial calipers
  • OCABS
• Rear Brakes:
  • Single Ø 220mm disc
  • Nissin 2-piston floating caliper
  • OCABS
• Instrument Display & Functions: LCD multi-function instruments with integrated colour TFT screen

Dimensions & Weights

• Handlebar Width: 792 mm
• Height (Without Mirror): 1140 mm
• Seat Height: 805 mm
• Wheelbase: 1413 mm
• Rake: 22.4º
• Trail: 91 mm
• Fuel Tank Capacity: 14.5 L
• Wet Weight: 216 kg

Fuel Consumption & Emissions

• Fuel Consumption: 4.4 l/100km (64.2 mpg)
• CO2 Figures: 104 g/km EURO 5+
  • Measured according to regulation 168/2013/EC
  • Figures derived from specific test conditions and may not reflect real-world driving results

Service

• Service Interval: 10,000 miles (16,000 km) / 12 months, whichever comes first

Standard Equipment

• Optimised Cornering ABS and Traction Control
• LED Headlights with DRL
• 2 Riding Modes: Road, Rain
• Cockpit-Mounted USB-C Socket
